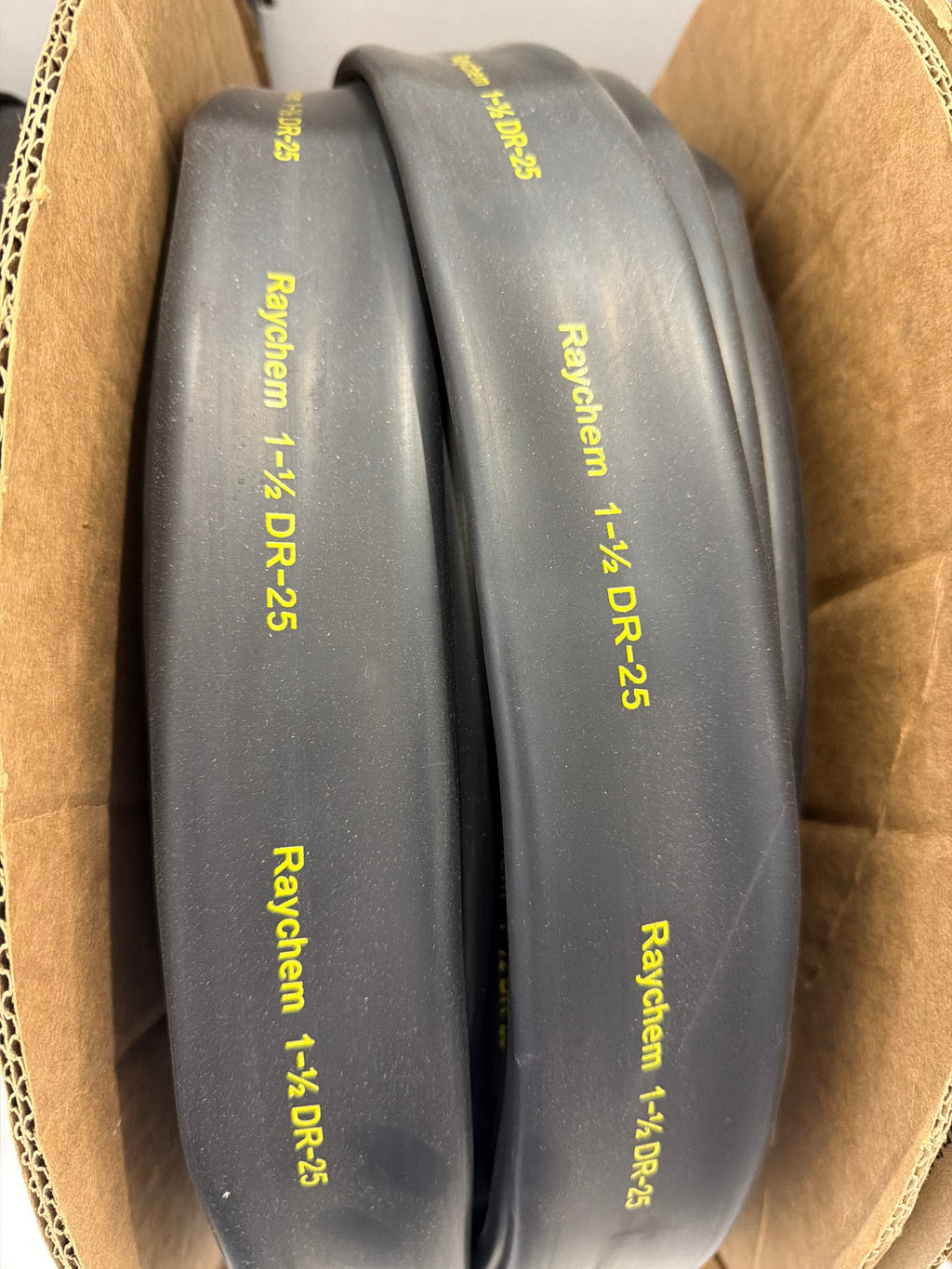

Raychem DR-25

Sold by the foot. Price per 1 foot

Raychem DR-25 is a flexible, flame-retardant, heat-shrinkable tubing with a 2:1 shrink ratio, known for excellent resistance to high temperatures, abrasion, and fluids like fuel, oil, and brake fluid, making it ideal for military and motorsport cable jacketing, operating from -75°C to 150°C, and shrinking at 175°C for permanent protection.

Raychem is measured (named) in post shrink size and sold per foot.

Key Specifications:

• Material: Radiation cross-linked elastomeric material.

• Shrink Ratio: 2:1 (shrinks to 50% of its supplied diameter).

• Operating Temp Range: -75°C to +150°C (-103°F to 302°F).

• Minimum Full Recovery Temp: 175°C (347°F).

• Flexibility: Highly flexible, even after shrinking.

• Resistance: Excellent resistance to fuels (diesel, aviation), hydraulic fluids, lubricating oils, brake fluid, and water.

• Flame Retardant: Yes.

• Color: Typically black, available with yellow or white print.

• Application: Used as a durable outer jacket for wire harnesses in demanding environments like military vehicles and racing.

Features:

• Provides strong abrasion and chemical protection.

• Offers a durable, reliable finish for cable protection.

• Can be used with System-25 molded shapes and high-performance adhesives for complete harness systems.
